Description

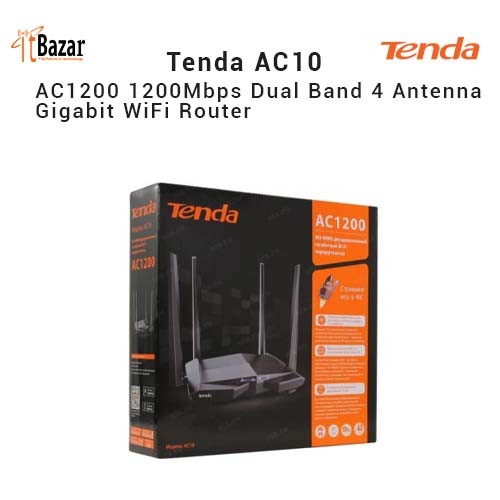

Tenda AC10  AC1200 Dual Band Gigabit Router

Key Features

Model: AC10

4*6dBi External Dual-Band Antennas

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

1 x Wan + 3 x Lan full gigabit ports

Hardware

Standard&Protocol

IEEE802.3, IEEE802.3u, IEEE802.3ab

Interfaces

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports

Antenna

4*6dBi external antennas

Button

1*WPS/Reset button

Power

Input：AC 100-240V~50/60Hz, 0.4A

Output：DC 9V⎓1A

Dimension

8.66 * 5.57 * 1.93 in (220*141.5*49mm)

LED Indicator

Sys*1,WAN*1, LAN*1,WiFi/WPS*1

Wireless

Wireless Standard

IEEE 802.11ac wave2/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Data Rate

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Frequency

Simultaneous dual band 2.4 & 5GHz

Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

FCC:<30dBm

Basic Features

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

Wireless Security : Enable /Disable

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP

Support automatic access detection

Supports broadband account automatic transfer

Operating Mode

Wireless Router Mode

Universal Repeater Mode

WISP Mode

AP Mode

DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation

Virtual Server

Port Forwarding

DMZ Host

UPnP

Security

Client Filter（supports black list and white list）

Parental Control（supports black list and white list）

Remote Web Management

Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet

DDNS

Support DynDNS, 88ip

VPN

IPsec pass through

PPTP pass through

L2TP pass through

Special Features

PPPoE Username/password Clone

Smart WiFi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App

Others

IPv6 Features Supported

Broadband management

MAC address clone

System Log

Backup & Restore configurations

Firmware upgrade from local

Others

Temperature

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

Default Access: tendawifi.com or http://192.168.0.1

Certification

CE/FCC/RoHS

EIRP Power (Max)

2.400-2.4835GHz: 19.95dBm (EIRP)

5.150-5.250GHz: 22.90dBm (EIRP)

Package Contents

Wireless Router*1

Gigabit Ethernet Cable*1

Power Adapter*1

Installation Guide*1
